Tšepe ea Khabone e entsoeng ka ASME b16.36 wn orifice flange e nang le jack screw ea boleng bo holimo Flange Orifice flange

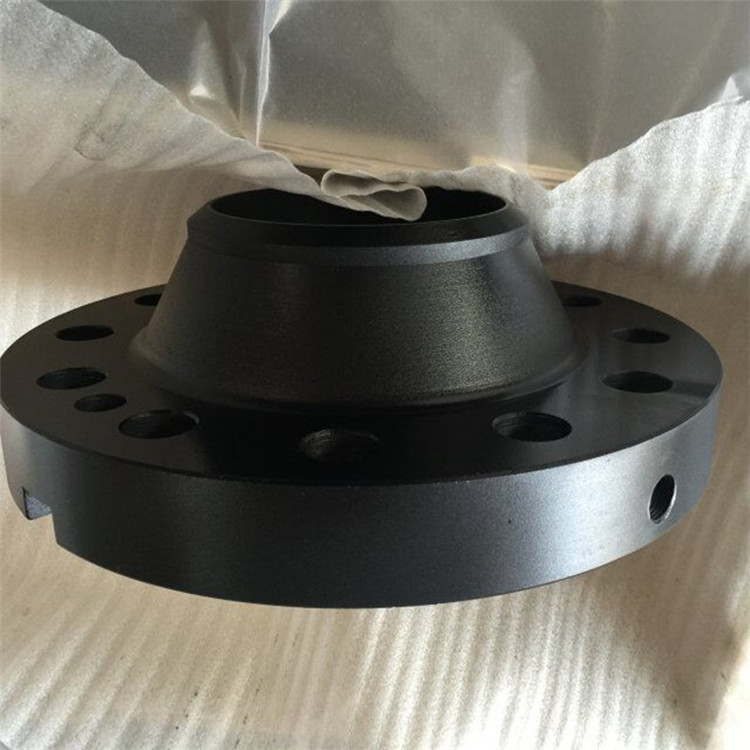

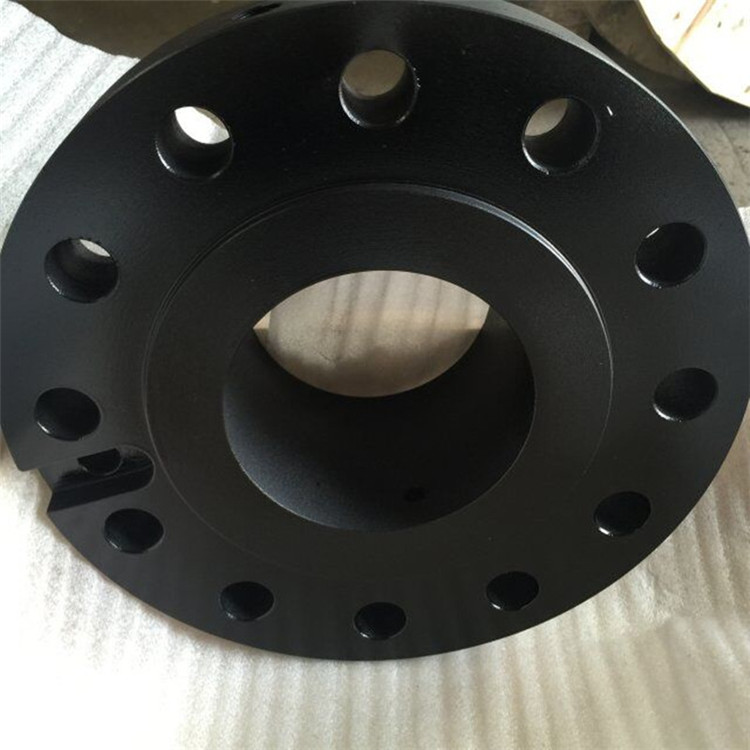

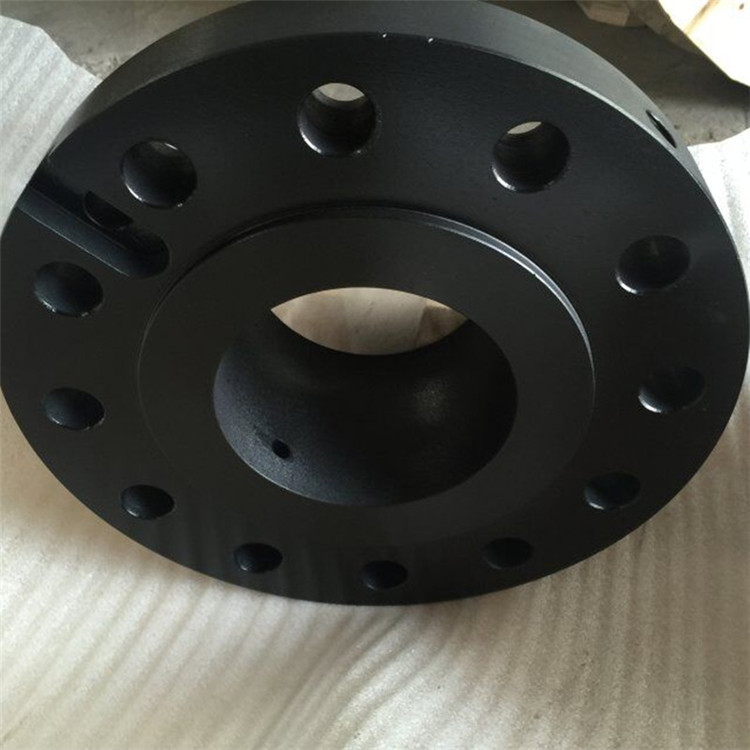

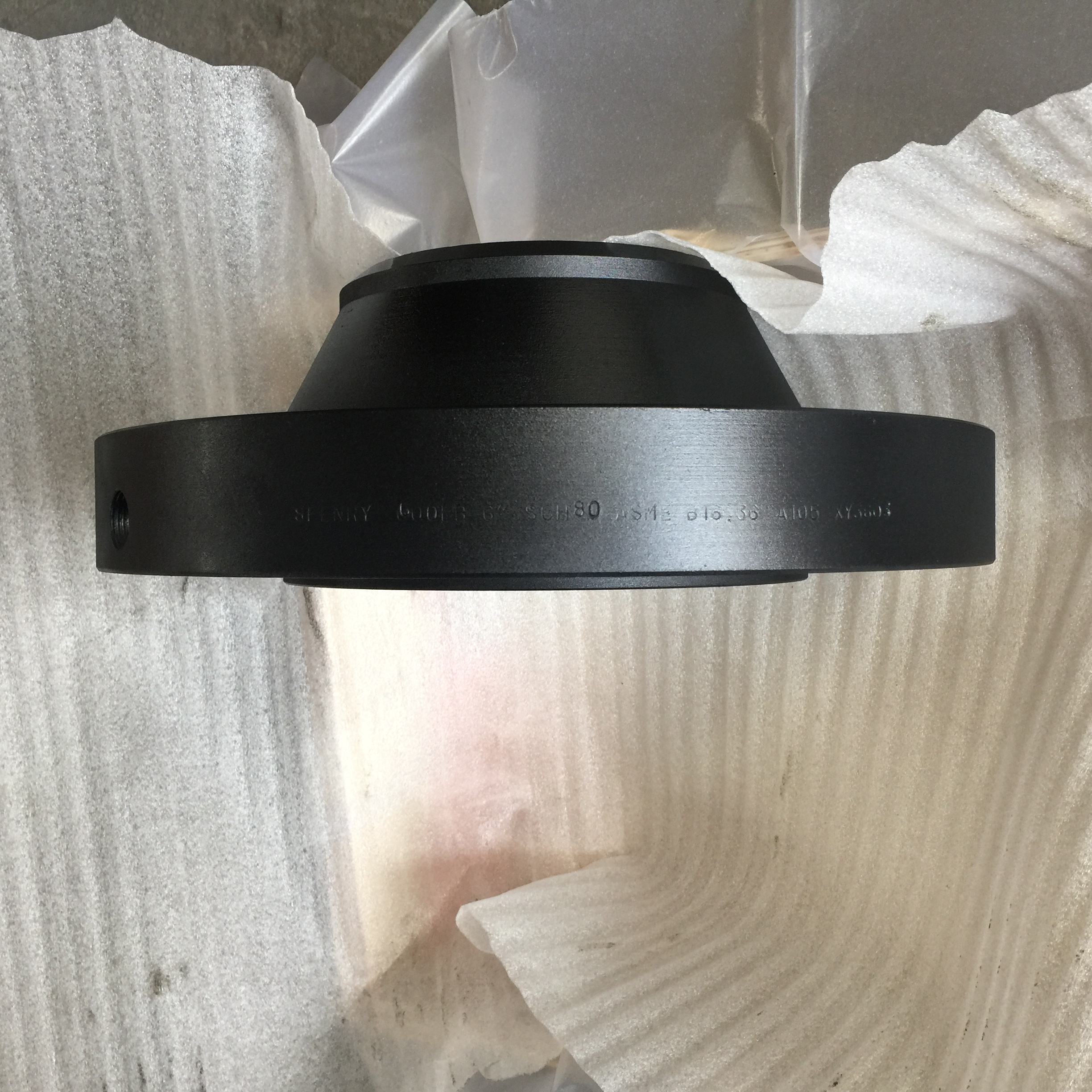

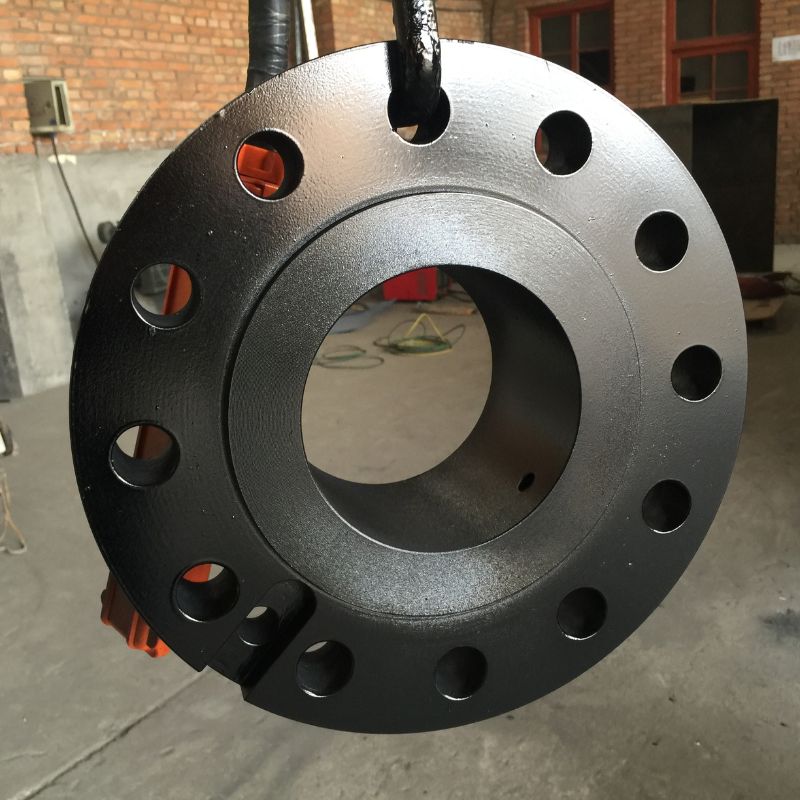

Tšepe ea Khabone e entsoeng ka tšepe ea ASME b16.36 wn orifice flange e nang le screw ea jack Flange ea boleng bo holimo Orifice flange Setšoantšo se Hlahisitsoeng

Tlhaloso e Khutšoanyane:

Boholo:1”-24''

Botenya ba lebota:SCH 5s-SCH XXS

Maemo a Tloaelehileng:ASTM B16.36

mofuta:molala o tjheseletsang ka sekerefe sa jack

QETA:pheletso ea bevel ANSl B16.25

Romella imeile ho rona Khoasolla e le PDF

Qaqiso ea Sehlahisoa

Tšebeliso e tloaelehileng ea lisebelisoa tsa liphaephe

TLHAHISO

Lebitso la Sehlahisoa	tjheseletsa molaleng oa Orifice flange
SAESE	1" holimo ho 24"
Khatello	150#-2500#
E tloaelehileng	ANSI B16.36
Botenya ba lebota	SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS joalo-joalo.
Thepa	Tšepe e sa ruseng: A182F304/304L, A182 F316/316L, A182F321, A182F310S, A182F347H,A182F316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541, 254Mo le jj. Tšepe ea k'habone: A105, A350LF2, Q235, St37, St45.8, A42CP, E24, A515 Gr60, A515 Gr 70
	Tšepe e sa ruseng habeli: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750, UNS32760, 1.4462,1.4410,1.4501 le jj. Tšepe ea phaephe: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 jj.
	Motsoako oa nikeli: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22, C-276, Monel400, Alloy20 jj. Motsoako oa Cr-Mo: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 jj.
Kopo	Indasteri ea peterole; indasteri ea polokelo le ea lifofane; indasteri ea meriana; mosi oa khase; feme ea motlakase; moaho oa likepe; kalafo ea metsi, jj.
Melemo	setoko se loketse, nako ea ho fana ka potlako; e fumaneha ka boholo bohle, e etselitsoe; boleng bo holimo

MAEMO A DIMENSION

AMSE B 16.5-CZIT

EN1092--CZIT

JISB 2220 -CZIT

TLHAHISO EA LIHLAHISOA TLHAHISO

1. Lisebelisoa

Thermocouple Instruments Ltd e ka fana ka

li-flange tsa orifice ka mefuta e mengata ea maemo a tloaelehileng le

thepa e khethehileng, ho kenyeletsoa:

Tšepe ea Khabone ea ASTM A105

Tšepe ea Khabone ea ASTM A350 LF2 e nang le mocheso o tlase

ASTM A182 F316 Tšepe e sa Khaotseng

ASTM A182 F304 Tšepe e sa Khaotseng

ASTM A182 F11 1% Cr ½% Mo

ASTM A182 F22 2¼% Cr 1% Mo

2. Lithapo tsa Khatello

Jwalo ka maemo, ho fanwa ka di-tapping tse pedi tsa ½” tsa NPT

ka har'a flange ka 'ngoe, e 'ngoe e na le polaka. Khoele e 'ngoe

boholo bo fumaneha ha ho kopuoa.

dikgokelo di ka hlaloswa, mme tsa weldwa ka ho feletseng

Li-nipple tsa phaephe le tsona lia fumaneha.

ka kakaretso mofuta oa 'flange', empa li-coupling tsa sekhutlo li joalo

boikhethelo.

3. Li-gasket

Thermocouple Instruments Ltd e khona ho fana ka

mefuta e fapaneng ea li-gasket tse loketseng tse nang le orifice ea tsona

Litlhaloso tse tloaelehileng ke:

- Mofuta oa lesale la IBC le botenya ba 1.5 mm, ha le na asbestos

- Mofuta oa leqeba la sprial le teteaneng oa 3.2 mm, tšepe ea carbon

ka ntle, tšepe e sa ruseng kahare, mapheo a 316L a nang le

setlatsetso sa graphite

HO TSHWAYA LE HO PHAKA

• Lera ka leng le sebelisa filimi ea polasetiki ho sireletsa bokaholimo

• Bakeng sa tšepe e sa ruseng kaofela e pakoa ka lebokose la plywood. Bakeng sa flange ea carbon e kholo e pakoa ka pallet ea plywood. Kapa e ka etsoa ka mokhoa o ikhethileng.

• Letšoao la ho romella le ka etsoa ha ho kopuoa

• Matshwao a dihlahiswa a ka betlwa kapa a hatiswa. OEM e a amoheleha.

TLHAHLOBO

• Teko ea UT

• Teko ea PT

• Teko ea MT

• Teko ea boholo

Pele ho pepa, sehlopha sa rona sa QC se tla hlophisa tlhahlobo ea NDT le tlhahlobo ea boholo. Hape se amohela TPI (tlhahlobo ea motho oa boraro).

Nyeoe ea Tšebelisano-'moho

Odara ena ke ea morekisi oa thepa oa Vietnam

Li-flange tsa orifice tsa Weldneck li phuthetsoe ka har'a butt-welded ka hare ho

Bophara ba ka hare (kapa kemiso) ba

phaephe e lokela ho hlaloswa ha ho odarwa.

Li-flange tsa Weldneck orifice li fumaneha ka lihlopha

300, 600, 900, 1500 le 2500. Sefahleho se phahamisitsoeng (RF)

le mefuta ea lenonyello la mofuta oa lesale (RTJ) e ka ba

Ka kopo sheba Leqephe la Lintlha tsa Sehlahisoa

FM-OP/RTJA bakeng sa lintlha tse qaqileng tsa lipoleiti tsa orifice tse nang le

Ba nang le RTJ.

Boholo ba bolt, boima le litekanyo tsa bohlokoa tsa

Likopano tsa flange tsa orifice li bontšitsoe ho

litafole tse latelang.

Mokhoa oa Tlhahiso

1Khetha thepa e tala ea 'nete	2. Seha thepa e tala	3. Ho futhumatsa pele ho nako
4. Ho betla	5. Kalafo ea mocheso	6. Mechini e Mebe
7. Ho cheka	8. Ho lokisa ka hloko	9. Ho tšoaea
10. Tlhahlobo	11. Ho paka	12. Phano

Re hlahisa di-flange tsa rona tsa orifice tse welded ka hara marago tsa boleng bo hodimo, tse etseditsweng ho fihlela ditlhoko tse hlokahalang tsa mefuta e fapaneng ya ditshebediso tsa indasteri. Di-flange tsa rona tsa orifice di etseditswe ho fana ka ditharollo tse tshepahalang le tse sebetsang hantle bakeng sa ho lekanya phallo ya metsi, dikgase le mouwane diphaepheng.

Li-flange tsa rona tsa orifice tsa weld tsa butt li entsoe ka thepa ea boleng bo holimo 'me li fana ka ho tšoarella ho ikhethang le ho hanyetsa mafome, e leng se etsang hore li lokele ho sebelisoa libakeng tse thata le tse senyang. Ho sebetsa hantle ha flange ho netefatsa hore e lekana hantle ebile e tiisa ka thata, ho fokotsa kotsi ea ho lutla le ho netefatsa ts'ebetso ea nako e telele.

Moralo oa molala o kopantsoeng oa li-flange tsa rona tsa orifice o etsa khokahano e matla le e sireletsehileng tsamaisong ea liphaephe bakeng sa botsitso le tšehetso e ntlafalitsoeng. Moralo ona o boetse o thusa ho fokotsa khatello ea maikutlo likhokahanong tsa flange, ka hona o ntlafatsa botšepehi ba sistimi ka kakaretso.

Li-flange tsa rona tsa orifice li fumaneha ka boholo bo fapaneng le litekanyetso tsa khatello ho fihlela litlhoko tse fapaneng tsa ts'ebeliso. Ebang li sebelisoa indastering ea oli le khase, petrochemical, ts'ebetso ea lik'hemik'hale kapa tlhahiso ea motlakase, li-flange tsa rona tsa orifice tsa molala oa weld li fana ka tekanyo e tsitsitseng le e nepahetseng ea phallo.

Ntle le kaho ea tsona e tiileng, li-flange tsa rona tsa orifice li bonolo ho li kenya le ho li hlokomela, li boloka nako le lisebelisoa tsa bohlokoa ho bareki ba rona. Qetello ea bokaholimo bo boreleli le litekanyo tse nepahetseng li ntlafatsa boiketlo ba ho sebetsana le ho kopanya.

Re utloisisa karolo ea bohlokoa eo li-flange tsa li-orifice plate li e bapalang ho netefatseng katleho le polokeho ea lits'ebetso tsa indasteri. Ke ka lebaka leo re ikemiselitseng ho fana ka lihlahisoa tse fihlelang maemo a boleng bo holimo le litlhaloso tsa ts'ebetso.

Ka di-flange tsa rona tsa orifice tsa ho weld butt, o ka tshepa hore ditshebediso tsa hao tsa ho lekanya phallo di tla rua molemo tshebetsong e tshepahalang, e nkang nako e telele le e nepahetseng. Latsoa phapang ka di-flange tsa rona tsa orifice tsa orifice tsa butt weld tse hodimo mme o eketse bokgoni ba tshebetso ya hao.
